RFTC
STANDARD FRAME FEATURES:
-
All frames are custom sized and start at $2600
-
Single stage powder coat from Prismatic Powders with vinyl logos
-
All frames are fully tig welded, made from a custom selection of Columbus and straight gauge chromoly steel tubing, and include unique drillium dropouts.
-
Comes standard with two bottle cage mounts, one on the seat tube and one on the downtube.
-
Standard frame comes with external cable and hose routing
-
Clearance for up to 700x32mm tires
-
Designed around Allied Alfa fork made in Rogers, Arkansas.
-
Custom geometry available upon request at no additional charge
-

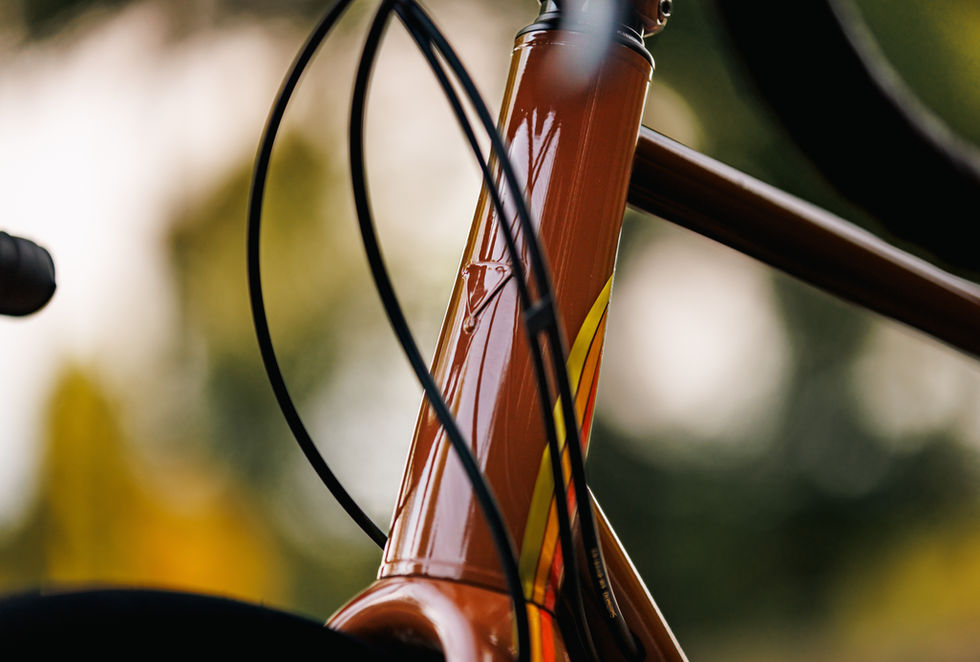

HEADTUBE: Made with Paragon Machine Works tapered headtube for 1-1/8th" to 1-1/2" tapered steerer fork (IS41/IS52 headsets). Straight 44mm PMW head tube available upon request.
-
BOTTOM BRACKET: 68mm BSA threaded, road width cranks, clamp on front derailleur
-

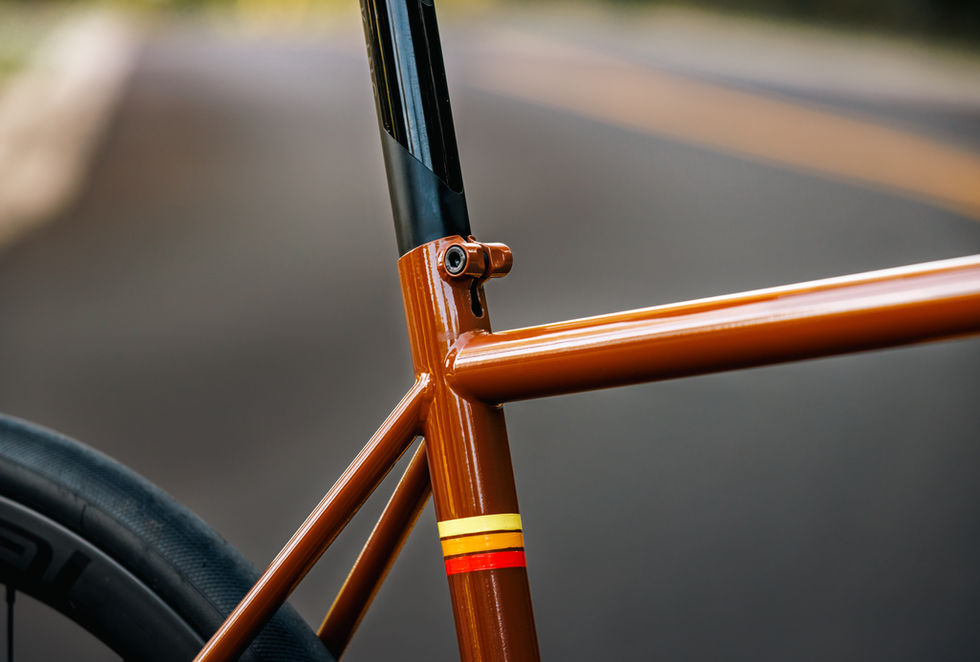

SEATPOST: 27.2mm, integrated clamp
-
REAR HUB SPACING: 142 x 12mm rear hub spacing
-
REAR BRAKE: flat mount 140mm
-
Allied Alfa or Echo fork: $650
-
Cane Creek Hellbender Headset IS41/IS52: $100
-
Rack mounts or extra bottle cage mounts: $50/pair
-
Internal cable and hose or DI2 routing: $150/per line
-
Upgraded tubeset (Columbus Spirit or Life): $150
-
Integrated front derailleur mount: $50
-
outsourced, high quality automotive paint and clear coat: $600+
SPECS:
ADD-ons and OPTIONS:
GEOMETRY
*sample geometry, frames include custom stack and reach to fit customer, geometry edits available at no extra charge
