SWEET LEAF

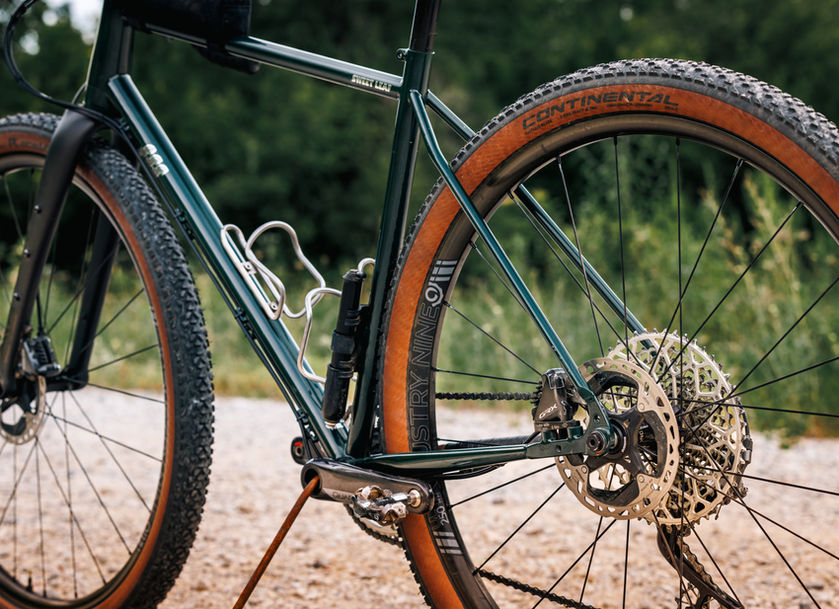

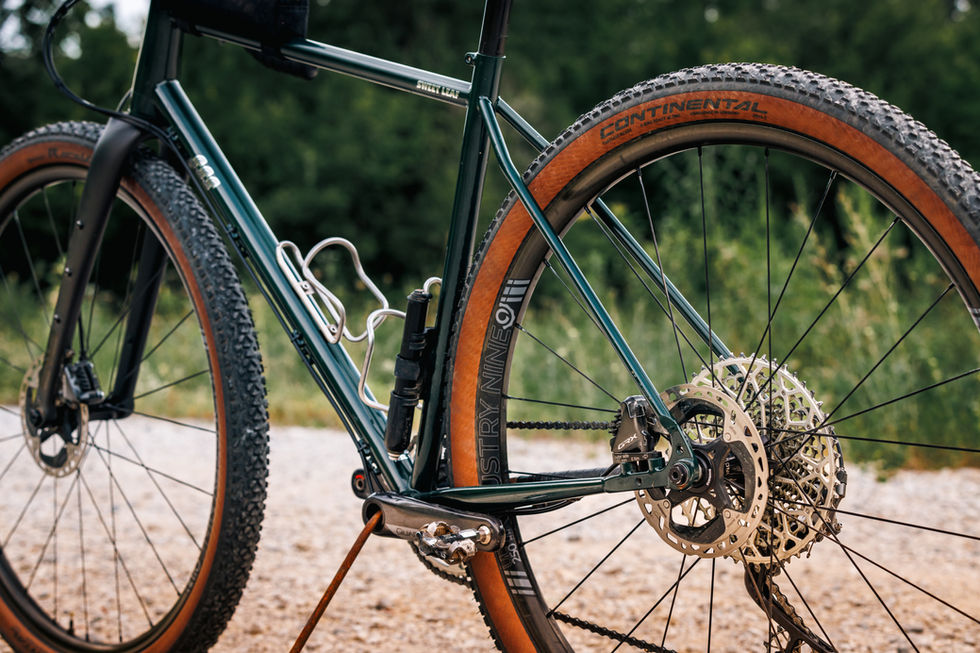

Enter The Sweet Leaf, the quintessential gravel bike. It fits a 55mm tire. It's designed to carry confidently on even the gnarliest of gravel roads. It can be built with sliding dropouts to unlock the world of single-speed. It can be customized with all the bikepacking duds your heart desires such as extra mounts and racks. 'Nuff said.

STANDARD FRAME FEATURES:​

  • All frames are custom sized and start at $2600

  • Single stage powder coat from Prismatic Powders with vinyl logos

  • All frames are fully tig welded, made from a custom selection of double butted and straight gauge chromoly steel tubing, and a unique drillium SSS stainless steel chain stay yoke.

  • Comes standard with three bottle cage mounts, one on the seat tube, one above the downtube with another beneath.

  • Standard frame comes with external cable and hose routing

  • Clearance for up to 700x55mm tires

  • Designed around ENVE Adventure fork in 55mm position, will work with other forks as well

  • Custom geometry available upon request at no additional charge

  • HEADTUBE: Made with Paragon Machine Works tapered headtube for 1-1/8th" to 1-1/2" tapered steerer fork (IS41/IS52 headsets). Straight 44mm PMW head tube available upon request.

  • BOTTOM BRACKET: 68mm BSA threaded, 1x crankset up to 44t chainring

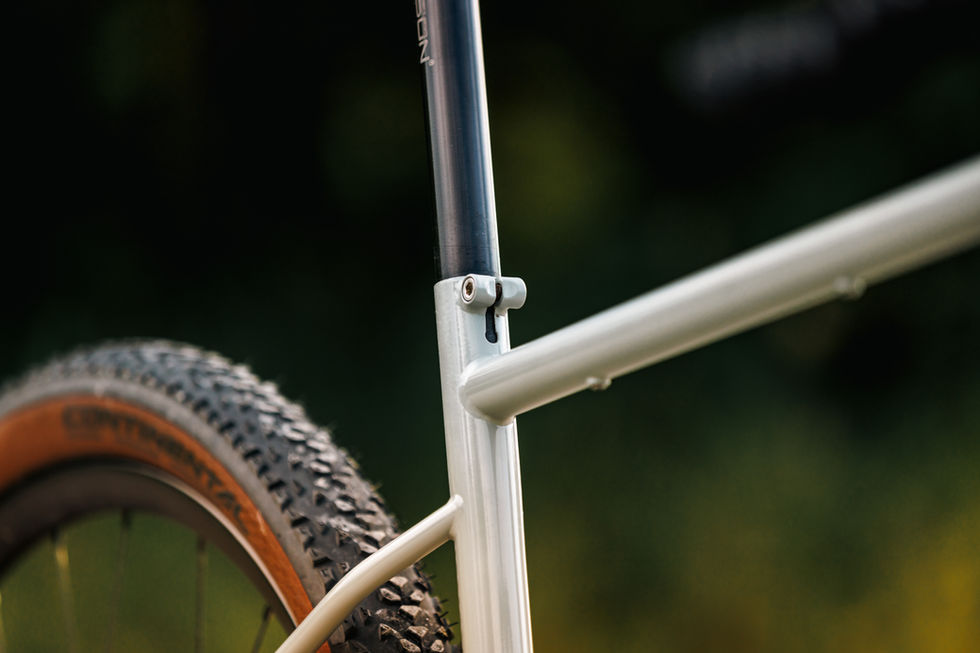

  • SEATPOST: 27.2mm, integrated clamp

  • REAR HUB SPACING: 142 x 12mm rear hub spacing

  • REAR BRAKE: flat mount 140mm

  • ENVE Adventure Fork: $625

  • Cane Creek Hellbender Headset IS41/IS52: $100

  • Paragon Machine Works sliding dropouts: $200

  • Rack mounts or extra bottle cage mounts: $50/pair

  • Internal cable and hose routing: $150/per line

  • ​outsourced, high quality automotive paint and clear coat: $600+

SPECS:​

ADD-ons and OPTIONS:​

GEOMETRY

*sample geometry, frames include custom stack and reach to fit customer, geometry edits available at no extra charge

SWEET LEAF GEO.png
