Warhorn

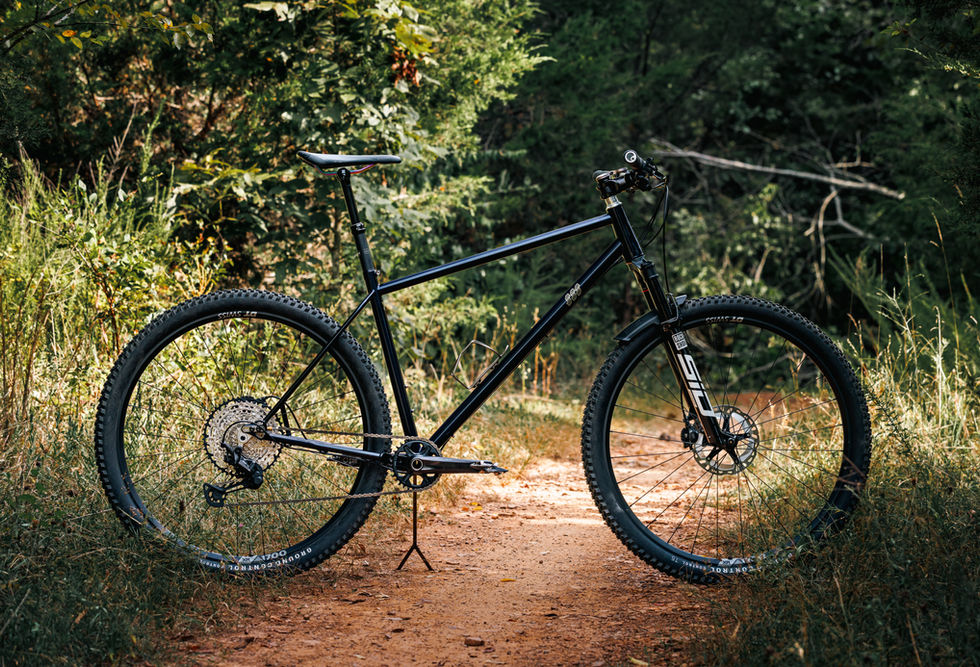

Take a deep breath. Now blow through beat up singletrack, blast down busted back roads, enjoy enormous efforts on SSS’s hardtail MTB. Built around a 120mm fork, 2.6" tire clearance and inspired by the goliath efforts of Ultra Endurance Bikepacking races like DOOM, The Arkansas High Country Race, and The Tour Divide.
STANDARD FRAME FEATURES:
-
All frames are custom sized and start at $2800
-
Single stage powder coat from Prismatic Powders with vinyl logos
-
All frames are fully tig welded, made from a custom selection of double butted and straight gauge chromoly steel tubing, and a unique drillium SSS stainless steel chain stay yoke.
-

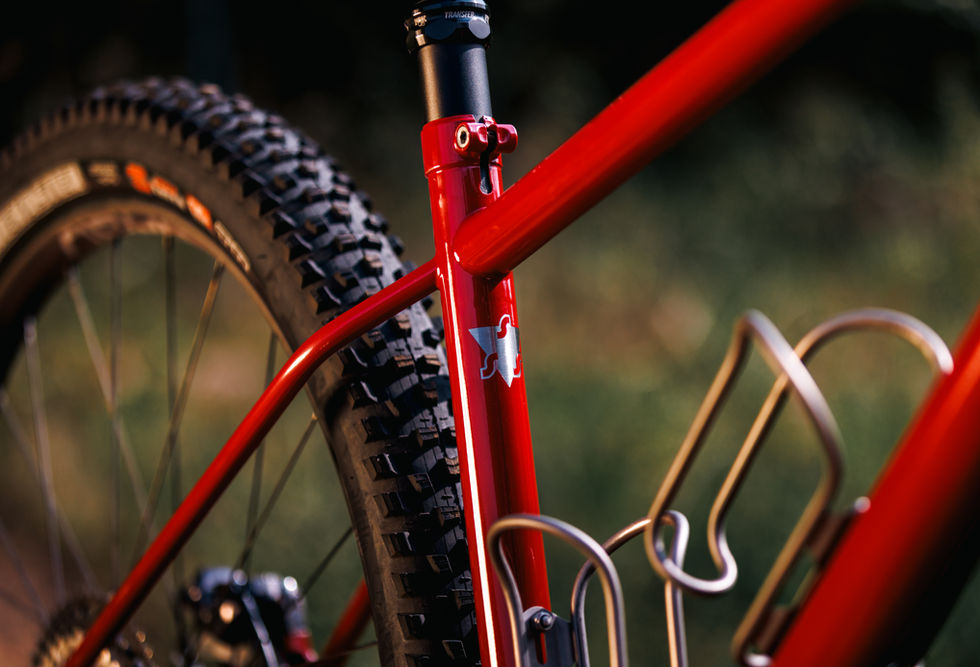

Comes standard with three bottle cage mounts, one on the seat tube (uses external studs on smaller frames), one above the downtube with another beneath.
-
Standard frame comes with external cable and hose routing, internal dropper cable port at bottom of seat tube.
-
Clearance for up to 29x2.6" tires
-
Designed around 29", 120-130mm travel forks (you could probably run a 140 as well)
-
Custom geometry available upon request at no additional charge
-

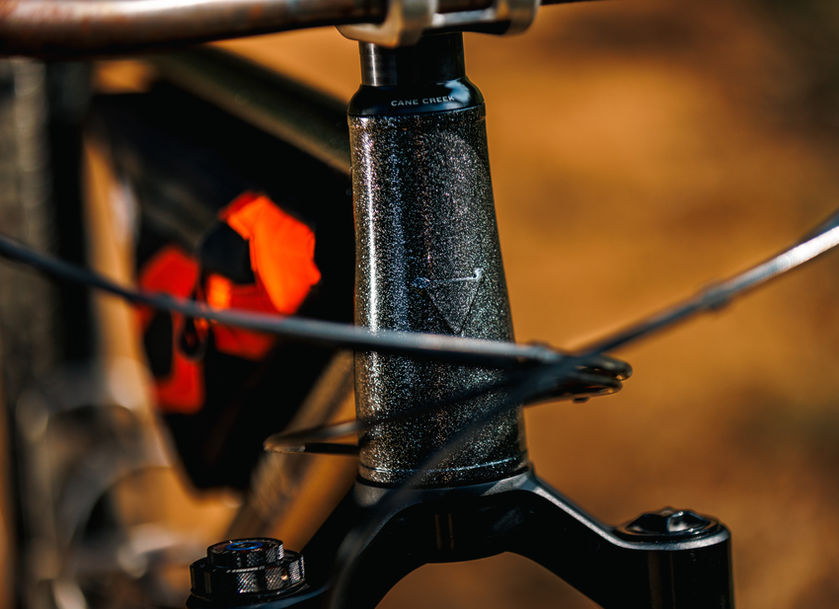

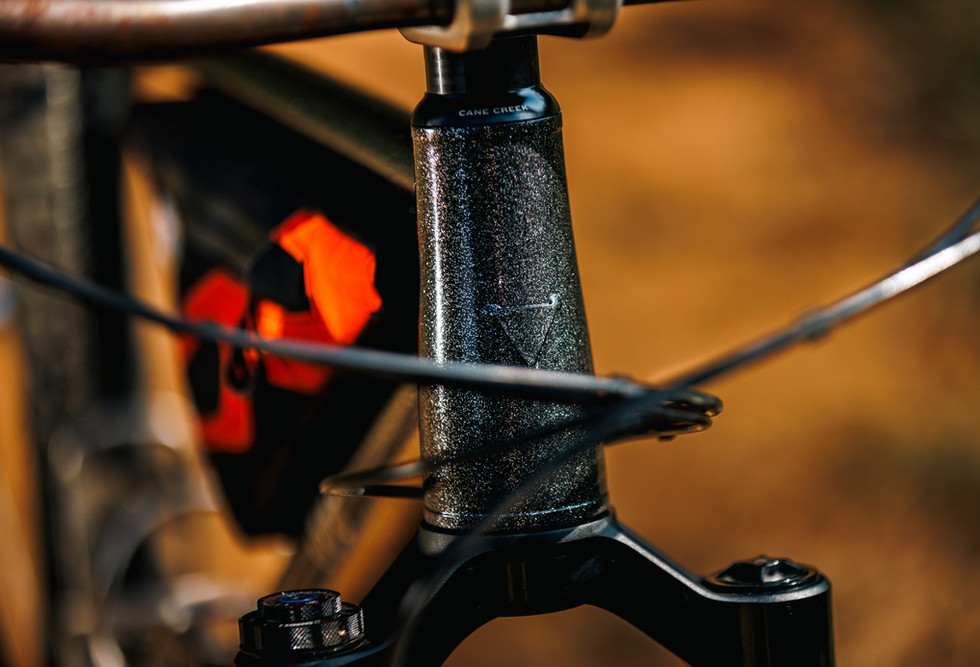

HEADTUBE: Made with Paragon Machine Works tapered headtube for 1-1/8th" to 1-1/2" tapered steerer fork (IS41/IS52 headsets). Straight 44mm PMW head tube available upon request.
-
BOTTOM BRACKET: 73mm BSA threaded, Boost 52mm chain line, 1x up to 34t chainring
-
SEATPOST: 30.9mm, integrated clamp, internal dropper port
-

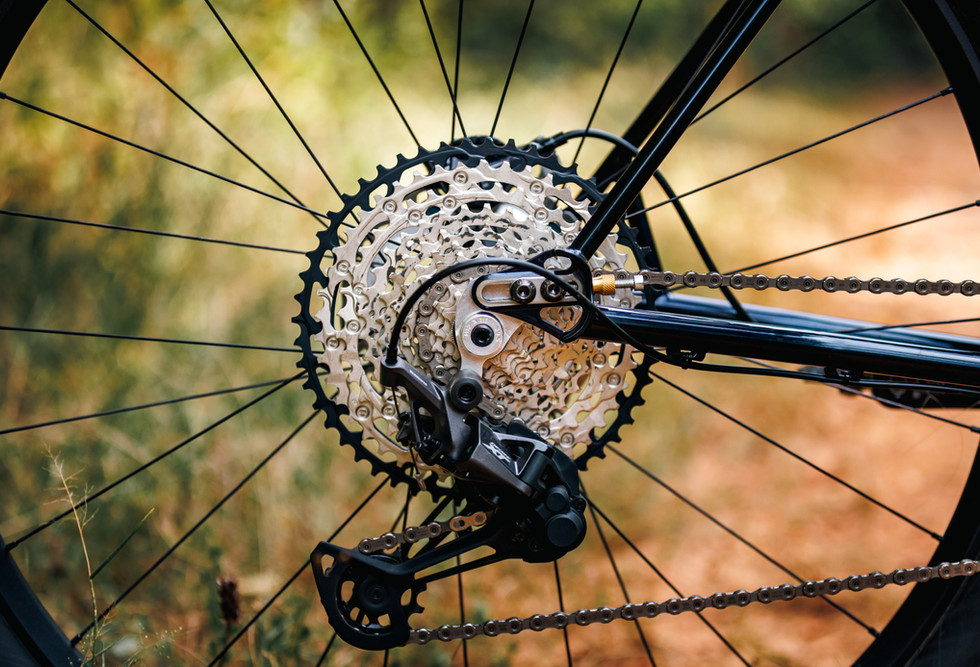

REAR HUB SPACING: Boost 148 x 12mm rear hub spacing
-

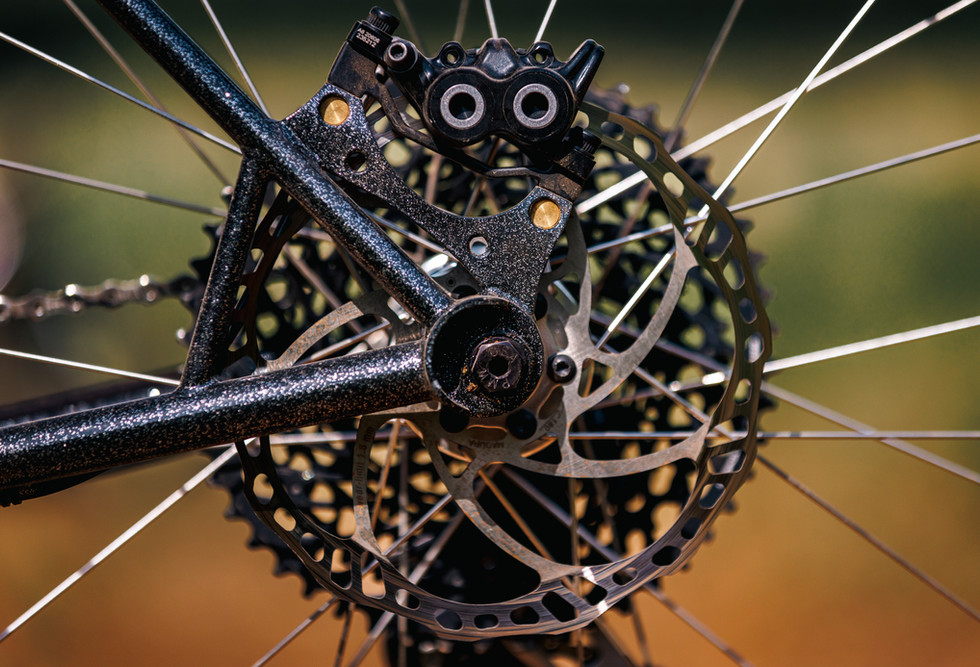

REAR BRAKE: post mount 160mm
-
UDH/T-Type Dropouts: $50
-
Suspension Fork: Fox or Rockshox, $800+
-
Cane Creek Hellbender Headset IS41/IS52: $100
-
Paragon Machine Works sliding dropouts: $200
-
Rack mounts or extra bottle cage mounts: $50/pair
-
outsourced, high quality automotive paint and clear coat: $600+
SPECS:
ADD-ons and OPTIONS:
ADD-ons and OPTIONS:
GEOMETRY
*sample geometry, frames include custom stack and reach to fit customer, geometry edits available at no extra charge
120mm, unsagged
130mm, unsagged
